SN DBS Quick Start

✍ Last Updated : December 29, 2022

🚪 Prequisite Knowledge (Optional)

Describe Initial Knowledge that reader need to know before reading this article

❓ Key Question / Problem / Issue

Describe what question / Problem / Issue this knowledge should answer

how to start using SN DBS utilizing agate internal network agents

✅ Expected Output/Definition of Done

Define what information you really need and the definition of done

Build Process Assisted by SN DBS

🎁 Resulting Solution

Write writing results below

Download and Install

Latest Download are Available in Playstation Development Network

Download SN DBS From Agate Internal Network Access Storage (Must inside agate Network)

\\agate.storage\AgateStudio\SN-DBS\SN-DBSv2.6.4.760.exe

Select SN-DBSv2.6.4.760.exe

Configure Agent

On the computer, open SN-DBS.
On the File menu, click Configure
In the SN-DBS Configuration dialog box, on the Network tab:
- Ensure the Set this Agent to be the Broker check box is cleared.
- In the Address of Broker box ip fill out agate broker ip

  10.10.10.214
Click OK.

Start Using SN DBS

SN DBS will pick up Compilation Job executed by Unreal Automation Tool and distribute it’s workload to all available agent

(Optional) SN DBS Configurations

To ensure your control on using SN DBS please configure these following setting for better SN DBS Experience

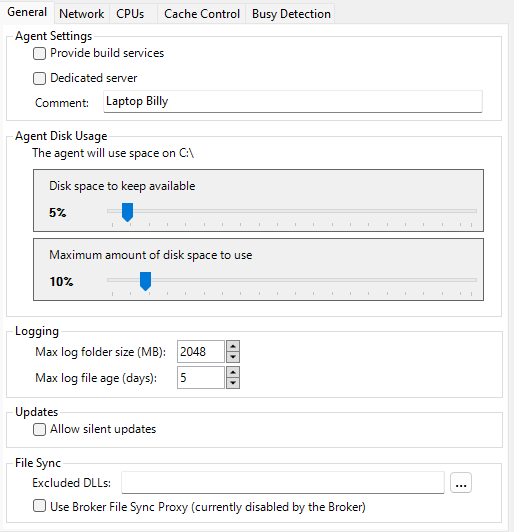

General Setting

Configure SN DBS to use your device as additional compliation helper or disable it.

(you can also add additional desciption to make your device discoverable by other user)

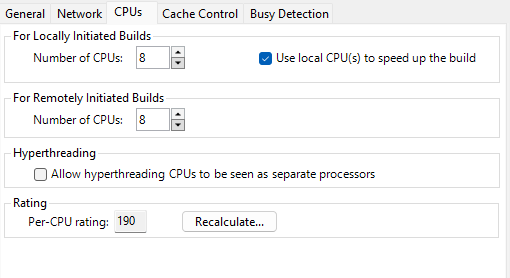

Limit CPU Usage

set local, and remote initiated build allocated CPU (it determine how many CPU you plan to use when working on local / remote initiated jobs

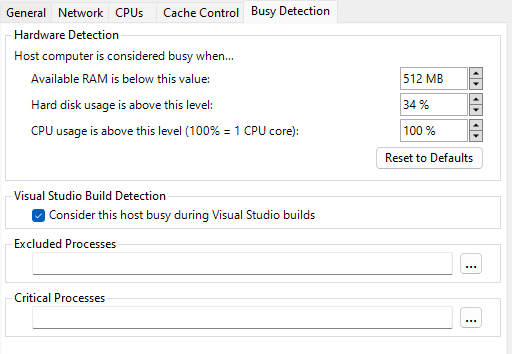

Busy Detection

when you Configure Agent you will also register your machine to become agent that work on distributed build job. to avoid this you can set busy detection to set parameter whether your machine is flagged busy (not used for build distribution job)

Disable SN-DBS

if SN DBS having issue you need to disable sn dbs service so the build process doesn’t utilize SN DBS

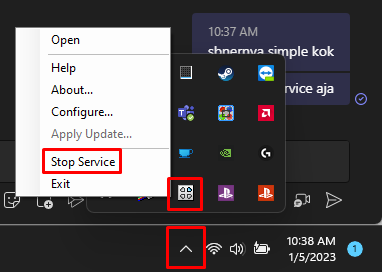

Click on Tray Icons
Right Click on SN-DBS icon
Click Stop Service
