Quick SOLID 101

1️⃣ Single Responsibility

• Each class contains one responsibility

• Example:

  • UserService class is just for Register. No Send Email process and Validate Email.

  public class UserService
  {
     EmailService _emailService;
     DbContext _dbContext;
     public UserService(EmailService aEmailService, DbContext aDbContext)
     {
        _emailService = aEmailService;
        _dbContext = aDbContext;
     }
     public void Register(string email, string password)
     {
        if (!_emailService.ValidateEmail(email))
           throw new ValidationException("Email is not an email");
           var user = new User(email, password);
           _dbContext.Save(user);
           emailService.SendEmail(new MailMessage("myname@mydomain.com", email) {Subject="Hi. How are you!"});

        }
     }
     public class EmailService
     {
         SmtpClient _smtpClient;
  		   public EmailService(SmtpClient aSmtpClient)
  		   {
  		      _smtpClient = aSmtpClient;
  		   }
  		   public bool virtual ValidateEmail(string email)
  		   {
  		      return email.Contains("@");
  		   }
  		   public bool SendEmail(MailMessage message)
  		   {
  		      _smtpClient.Send(message);
  		   }
  }



👐 Open closed principle

• Open for extension closed for modification
• Class is designed with future use in mind
• Example:

  • Instead of:

    public class Rectangle
    {
        public double Width { get; set; }
        public double Height { get; set; }
    }

    public double Area(object[] shapes)
    {
        double area = 0;
        foreach (var shape in shapes)
        {
            if (shape is Rectangle)
            {
                Rectangle rectangle = (Rectangle) shape;
                area += rectangle.Width*rectangle.Height;
            }
            else
            {
                Circle circle = (Circle)shape;
                area += circle.Radius * circle.Radius * Math.PI;
            }
        }

        return area;
    }



  • We Use

    public abstract class Shape
    {
        public abstract double Area();
    }

    public class Rectangle : Shape
    {
        public double Width { get; set; }
        public double Height { get; set; }
        public override double Area()
        {
            return Width*Height;
        }
    }

    public class Circle : Shape
    {
        public double Radius { get; set; }
        public override double Area()
        {
            return Radius*Radius*Math.PI;
        }
    }



👋 Liskov substitution principle

• You should be able to use any derived class instead of a parent class and have it behave in the same manner without modification

• Behavioural subtyping

• Focus on contravariance & covariance

  • contravariance
    • Method parameter should be open as much as possible, using more base parent type
    • Parameter type can be any specific subtype but treated as the base type in method process
  • covariance
    • Method return type should be open as much as possible, using more base parent type
    • Return type is base parent type in method process, if possible, even when the inside process of the method use specific typing of said type

• Example:

  public interface IReadableSqlFile
  {
     string LoadText();
  }
  public interface IWritableSqlFile
  {
     void SaveText();
  }

  public class ReadOnlySqlFile: IReadableSqlFile
  {
     public string FilePath {get;set;}
     public string FileText {get;set;}
     public string LoadText()
     {
        /* Code to read text from sql file */
     }
  }

  public class SqlFile: IWritableSqlFile,IReadableSqlFile
  {
     public string FilePath {get;set;}
     public string FileText {get;set;}
     public string LoadText()
     {
        /* Code to read text from sql file */
     }
     public void SaveText()
     {
        /* Code to save text into sql file */
     }
  }

  public class SqlFileManager
  {
     public string GetTextFromFiles(List<IReadableSqlFile> aLstReadableFiles)
     {
        StringBuilder objStrBuilder = new StringBuilder();
        foreach(var objFile in aLstReadableFiles)
        {
           objStrBuilder.Append(objFile.LoadText());
        }
        return objStrBuilder.ToString();
     }
     public void SaveTextIntoFiles(List<IWritableSqlFile> aLstWritableFiles)
     {
     foreach(var objFile in aLstWritableFiles)
     {
        objFile.SaveText();
     }
     }
  }



🔌 Interface segregation principle

• Splits interfaces that are very large into smaller and more specific ones

• These conform to Single responsibility, as even each interface must declare each of their responsibility, and we must not have a responsibility that's too big.

  • When responsibility is too big, we must split it into multiple different responsibility (decoupling)
  • By splitting responsibility, each changes made is contained within those responsibility, making development can progress faster and more robust

• Example:

  public Interface ILead
  {
     void CreateSubTask();
     void AssginTask();
     void WorkOnTask();
  }
  public class TeamLead : ILead
  {
     public void AssignTask()
     {
        //Code to assign a task.
     }
     public void CreateSubTask()
     {
        //Code to create a sub task
     }
     public void WorkOnTask()
     {
        //Code to implement perform assigned task.
     }



  The design looks fine until there are role like Manager that do not WorkOnTask.

  public class Manager: ILead
  {
     public void AssignTask()
     {
        //Code to assign a task.
     }
     public void CreateSubTask()
     {
        //Code to create a sub task.
     }
     public void WorkOnTask()
     {
        throw new Exception("Manager can't work on Task");
     }
  }



  Because of that, we should design as follow:

  public interface ILead
  {
     void AssignTask();
     void CreateSubTask();
  }

  public interface IProgrammer
  {
     void WorkOnTask();
  }

  public class TeamLead: IProgrammer, ILead
  {
     public void AssignTask()
     {
        //Code to assign a Task
     }
     public void CreateSubTask()
     {
        //Code to create a sub task from a task.
     }
     public void WorkOnTask()
     {
        //code to implement to work on the Task.
     }
  }



🔀 Dependency Inversion principle

Dependency inversion principle - Wikipedia

• Dependency modules are reversed, thus rendering high-level modules independent of the low-level module implementation details.

  • High-level modules should not import anything from low-level modules. Both should depend on abstractions (e.g., interfaces).
  • Abstractions should not depend on details. Details (concrete implementations) should depend on abstractions.

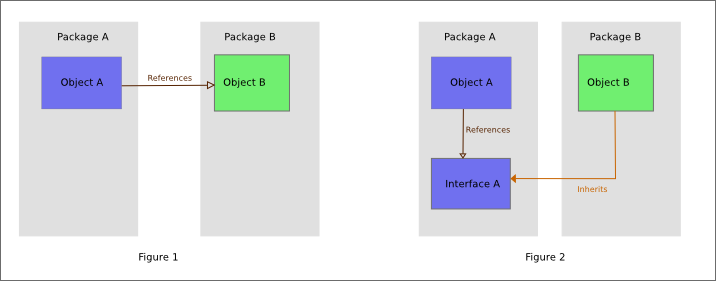

  Invert the package dependency from Package A needs Package B to Package B needs Package A, by declaring Interface A in Package A. Interface A contains the definition of the responsibility Object B needed to fulfill.

  Before:

  ExceptionLogger need concrete FileLogger & DbLogger

  public class DbLogger
  {
     public void LogMessage(string aMessage)
     {
        //Code to write message in database.
     }
  }
  public class FileLogger
  {
     public void LogMessage(string aStackTrace)
     {
        //code to log stack trace into a file.
     }
  }
  public class ExceptionLogger
  {
     public void LogIntoFile(Exception aException)
     {
        FileLogger objFileLogger = new FileLogger();
        objFileLogger.LogMessage(GetUserReadableMessage(aException));
     }
     public void LogIntoDataBase(Exception aException)
     {
        DbLogger objDbLogger = new DbLogger();
        objDbLogger.LogMessage(GetUserReadableMessage(aException));
     }
     private string GetUserReadableMessage(Exception ex)
     {
        string strMessage = string.Empty;
        //code to convert Exception's stack trace and message to user readable format.
        //....
        //....
        return strMessage;
     }
  }
  public class DataExporter
  {
     public void ExportDataFromFile()
     {
        try {
           //code to export data from files to database.
        }
        catch(IOException ex)
        {
           new ExceptionLogger().LogIntoDataBase(ex);
        }
        catch(Exception ex)
        {
           new ExceptionLogger().LogIntoFile(ex);
        }
     }
  }



  After:

  ExceptionLogger references ILogger.

  public interface ILogger
  {
     void LogMessage(string aString);
  }

  public class DbLogger: ILogger
  {
     public void LogMessage(string aMessage)
     {
        //Code to write message in database.
     }
  }
  public class FileLogger: ILogger
  {
     public void LogMessage(string aStackTrace)
     {
        //code to log stack trace into a file.
     }
  }

  public class ExceptionLogger
  {
     private ILogger _logger;
     public ExceptionLogger(ILogger aLogger)
     {
        this._logger = aLogger;
     }
     public void LogException(Exception aException)
     {
        string strMessage = GetUserReadableMessage(aException);
        this._logger.LogMessage(strMessage);
     }
     private string GetUserReadableMessage(Exception aException)
     {
        string strMessage = string.Empty;
        //code to convert Exception's stack trace and message to user readable format.
        //....
        //....
        return strMessage;
     }
  }

  public class DataExporter
  {
     public void ExportDataFromFile()
     {
        ExceptionLogger _exceptionLogger;
        try {
           //code to export data from files to database.
        }
        catch(IOException ex)
        {
           _exceptionLogger = new ExceptionLogger(new DbLogger());
           _exceptionLogger.LogException(ex);
        }
        catch(Exception ex)
        {
           _exceptionLogger = new ExceptionLogger(new FileLogger());
           _exceptionLogger.LogException(ex);
        }
     }
  }
